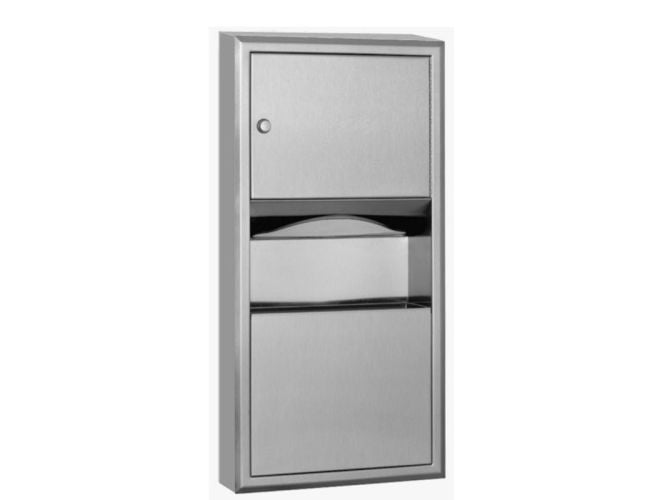

Bobrick Classic Paper Towel Dispenser & Waste Bin 7.6L

Quick Overview

  • Bobrick Classic Paper Towel Dispenser & Waste Bin
  • Dispenses 350 C‑fold or 475 multifold towels
  • Knob-latch retains door
  • Removable waste container has 2-gal. (7.6-L) capacity.
Price:
Excl. Vat: £159.29 Incl. Vat: £191.15

Availability: In stock

Delivery Time:   1-2 Days

Warranty:   1 Year

Quick Code:   11123

Price Match Image

Global washroom accessory manufacturer for over 100 years presents the hospitality industry and all business owners looking for a cost-effective investment with the perfect solution. The Bobrick towel dispenser and waste bin not only combines two functionalities in one, but brings forth big savings and massive business gains. It's primarily designed to add efficiency and cleanliness to your washroom with its overall build and smooth operation.

High-Quality Craftsmanship

Seamless all-welded satin-finish construction has refined the Bobrick paper towel dispenser and trash bin into an elegant and extremely sturdy combination unit, inside and out.

Type 304 stainless steel traces its path right from the door that's secured to the cabinet with a full-length piano hinge, to the drawn and bevelled flange, to the outer skirt for surface-mounting. The similarly crafted Bobrick stainless steel waste bin 7.6L component is retained within the cabinet by a friction catch, and can be removed for emptying contents. The entire package arrives in vandal resistant material that comes with the added security of a knob latch.

High-Efficiency Combination Unit

A 2-in-1 hygiene equipment is a great way to conserve space in limited bathroom and kitchen areas. Practical design further allows for efficient operations in terms of:

  • time;
  • costs;
  • resources;
  • and maintenance.

The heavy duty dispenser component can hold 350 C-fold or 475 multifold paper towels without having to be initially adjusted. The rounded tray paves the way to safe and easy access to the sheets without the frustration of tearing. TowelMate can be added as an optional accessory to save up to 20% on towel usage with only one piece dispensed at a time.

Health and Safety Matters Most

Buy Bobrick dispenser and bin combination units from QBIC, and you have the guarantee of receiving great value for your money in high-quality trusted products that are built to last. The unique paper towel dispenser with 2-gallon capacity waste receptacle renders your establishment safer and healthier as it doubles the protection against bacteria and various contaminants.

Product Code Colour Height (mm) Width (mm) Projection  (mm)
 B-3699  Brushed Satin  710 360  110



MATERIALS:

Cabinet — 18-8, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin-finish.

Flange — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Drawn and bevelled, one-piece, seamless construction.

Skirt — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin-finish.

Door — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Secured to cabinet with a full-length, stainless steel piano-hinge. Equipped with a knob latch.

Paper Towel Dispenser — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Capacity: 350 C-fold or 475 multifold paper towels.

Waste Receptacle — 18-8, type-304, Heavy-gauge stainless steel with satin-finish. Top edges are hemmed for safe handling. Retaining Hook. Capacity: 2-gal. (7.6-L).

Optional: Order Bobrick Model No. 369-130 TowelMate® available as an optional accessory. TowelMate accessory allows for paper towels to dispense one at time without bulging or sagging, or falling through the towel tray opening. The 90 degree return on the towel guide prevents papers from falling forward and out when door is opened for servicing.



OPERATION:

Paper towel dispenser will dispense C-fold or multifold paper towels without adjustment. Rounded towel tray has hemmed opening to dispense paper towels without tearing. Waste receptacle is retained in cabinet by a retaining hook feature and is removable for servicing.



INSTALLATION:

Mount unit on wall with #8 x 1-1/4" sheet-metal screws (not furnished) at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 1/8" (3mm) toggle bolts or expansion bolts. If unit projects above top of wainscot, provide aluminium channel or other filler to eliminate gap between unit and finish face of wall.



SPECIFICATION:

Surface-mounted paper towel dispenser and waste receptacle shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin-finish. Flange shall be drawn, one-piece, seamless construction. Door shall be secured to cabinet with a full-length, stainless steel piano-hinge, and equipped with a knob latch. Paper towel dispenser shall dispense 350 C-fold or 475 multifold paper towels without adjustment or use of adapters. Removable stainless steel waste receptacle shall be retained in cabinet by a retaining hook feature, have top edges hemmed for safe handling; and shall have a minimum capacity of 2-gal. (7.6-L).

Download Attachment
pdfTechnical Data Sheet(138.3 KB )Download
