More Views

Bobrick Classic Recessed Waste Bin 45.4L

Quick Overview

  • Bobrick Classic Recessed Waste Bin
  • Capacity : 45.4L
  • Optional Vinyl Liner
  • Can be used with LinerMate
  • Brushed Satin Stainless Steel
Price:
Excl. Vat: £150.15 Incl. Vat: £180.18

Availability: In stock

Delivery Time:   1-2 Days

Warranty:   1 Year

Quick Code:   11073

Price Match Image

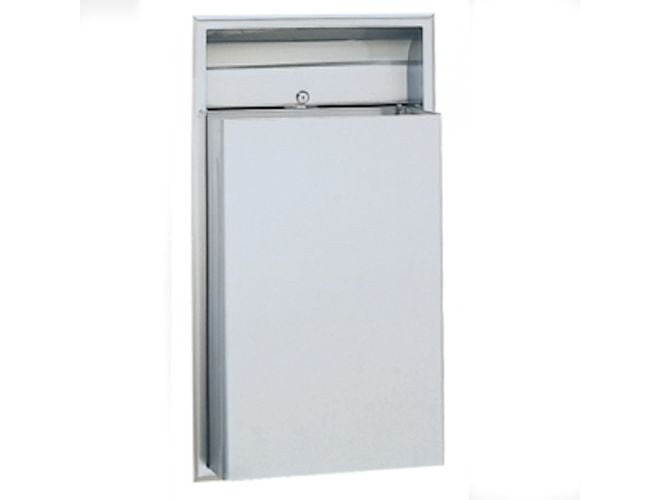

Bobrick Classic Recessed Waste Bin 45.4L

Brushed satin-finish stainless steel with seamless bevelled flange.

Seamless bevelled flange.

Removable bin locks into cabinet.

Hooks hold optional vinyl liner.

Capacity: 45.4L.

All locking accessories are keyed alike for ease and convenience of maintenance.

Product Code Colour Capacity Height (mm) Width (mm) Projection/Depth (mm)
 B-3644 Brushed Satin  45.4L  780 435 100
Rough Wall Opening 745 405 102





MATERIALS:

Cabinet — 18-8, type-304, heavy-gauge stainless steel. All-welded construction. Exposed surfaces have satin-finish.

Flange — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Drawn and bevelled, one-piece, seamless construction.

Waste Receptacle — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Front and side edges of bottom and all top edges are hemmed for safe handling. Secured to cabinet with a tumbler lock keyed like other Bobrick washroom accessories. Capacity: 12-gal. (45.4-L).



OPERATION:

To empty waste receptacle, unlock with key provided. NOTE: To accommodate disposable trash liners, order LinerMate®, sold as a optional accessory item. LinerMate eliminates unsightly trash liner overhang and facilitates installation and removal of disposable trash liners in the 12-gallon waste receptacle. Options: • LinerMate for 12-gal waste only: order Bobrick Part No. 3944-134. • with reusable vinyl liner Part No. 368-16.



INSTALLATION:

Provide framed rough wall opening 16" wide x 29-1/4" high (405 x 745mm). Minimum recessed depth required to finish face of wall is 4" (102mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits. If unit projects above top of wainscot, provide aluminium channel or other filler to eliminate gap between flange and finish face of wall. Mount unit in wall opening with shims between framing and cabinet at all points indicated by an S, then secure unit with sheet-metal screws (not furnished).



SPECIFICATION:

Recessed waste receptacle shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Flange shall be drawn and bevelled, one-piece, seamless construction. Removable waste receptacle shall be secured to cabinet with a tumbler lock keyed like other Bobrick washroom accessories, have front and side edges of bottom and all top edges hemmed for safe handling, and shall have a minimum capacity of 12-gal. (45.4-L).

Download Attachment
pdfTechnical Data Sheet(108.99 KB )Download
