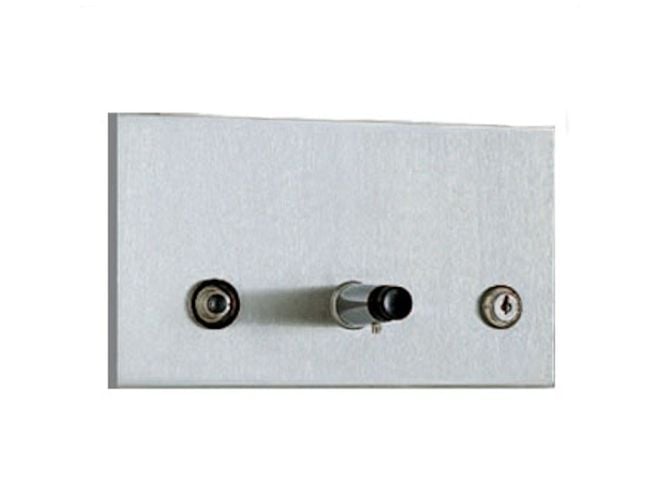

Bobrick TrimLine Recessed Soap Dispenser 1.3L

Quick Overview

  • Bobrick TrimLine Recessed Soap Dispenser
  • Bulk Fill Dispenser
  • Capacity : 1300ml
  • Corrosion Resistant Valve
  • Brushed Satin Stainless Steel
Price:
Excl. Vat: £85.52 Incl. Vat: £102.62

Availability: In stock

Delivery Time:   1-2 Days

Warranty:   1 Year

Quick Code:   11072

Price Match Image

Bobrick TrimLine Recessed Soap Dispenser 1.3L manufactured in type 304 stainless steel with a brushed satin finish

 Door panel has 90 degree return and no visible flange.

Enclosed plastic soap vessel on back of door swings open for easy filling

Full-length hinge and key lock secure door to cabinet

Corrosion-resistant valve

Capacity: 1.3L

Level Indicator

Valve operates with less than 22.2N of force, all locking accessories are keyed alike for ease and convenience of maintenance.

Notes : Bobrick stainless steel soap dispensers are not designed to dispense alcohol-based hand sanitizers or iodine-based surgical soaps. To help prevent corrosion and extend the service life of soap dispensers, liquid soaps should be chloride-free and pH-neutral.

Product Code Colour Capacity Height (mm) Width (mm) Projection/Depth (mm)
 B-306 Brushed Satin   1.3L 140 240 76
Rough Wall Opening 110 210 96



MATERIALS:

Recessed Mounting Box — 18-8 S, type-304 stainless steel. All-welded construction.

Completely enclosed. Door — 18-8 S, type-304, 18-gauge (1.2mm) stainless steel with satin finish. 1/4" (6mm) 90° return edges for maximum rigidity. Secured to mounting box with a concealed stainless steel piano-hinge. Equipped with a polycarbonate refill-indicator window and a tumbler lock keyed like other Bobrick washroom accessories.

Soap Vessel — Molded plastic. Large opening equipped with plastic cover. Capacity: 45-fl oz (1.3-L).

Soap Valve — Valve mechanism with O-ring seals. Stainless steel inner spring and spout. Chrome-plated brass housing.



OPERATION:

Corrosion-resistant valve dispenses commercially marketed all-purpose hand soaps. Valve operates with one hand, without tight grasping, pinching, or twisting of the wrist, and with less than 5 pounds of force (22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.). Window indicates when refilling is required. Door secured to mounting box unlocks with key provided and swings open 90° for filling without removing from wall.



INSTALLATION:

Provide framed rough wall opening 8-3/8" wide by 4-3/8" high (210 x 110mm). Minimum recessed depth required from finish face of wall is 3-7/8" (98mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure unit with screws furnished by manufacturer. Note: Place unit as close to top of deck of lavatory as plumbing vent code will permit and with bottom of door high enough to clear fixture trim.



SPECIFICATION:

Recessed soap dispenser, including mounting box shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Valve shall be operable with one hand and with less than 5 pounds of force (22.2 N) to comply with barrier-free accessibility guidelines (including ADAAG in U.S.A.). Door shall have molded plastic soap container with plastic cap attached to back, equipped with a soap refill-indicator window and tumbler lock keyed like other Bobrick washroom accessories, and shall have concealed stainless steel piano-hinge. Corrosion-resistant valve shall dispense commercially marketed all-purpose hand soaps. Soap vessel shall have a capacity of 45-fl oz (1.3-L).
