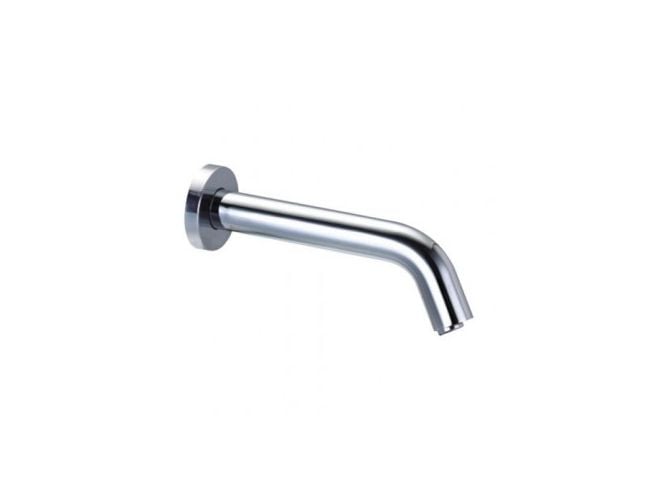

Infratap FixFlow Panel Mounted Automatic Tap

£119.15 £99.29
Or
Discount code
Apply Remove
  • Touch Free Electronic Tap
  • Single inlet
  • 3/8" BSP Water supply connection
  • Ideal for counter top basins
Availability: In stock
Quick Code :
13888
Warranty :
1 Year
Brand :
Infratap
Delivery :
2-3 Days
Sku :
WR-ZY-8131A

The Fixflow range of automatic taps are specifically designed to be installed at a preset temperature, controlled by a thermostatic regulator (supplied) ensuring a constant controlled temperature every
time the tap is activated. Ideal for public and commercial washrooms.

• Touch Free Electronic Tap - Tap is activated when the user brings hands within the sensor range
• Ultimate Hygiene-Prevents cross contamination
• Single inlet – cold or pre-mixed water supply
• Superior quality chrome plated brass
• 3/8” BSP Water supply connection
• Filters, fixing bolts, installation instructions and power source supplied with each tap
• State of the art electronic infrared sensor
• Ideal for counter top basins
• Operating pressure 1.0 - 8.0 bar (14.5 - 116 PSI)
• Maximum water temperature 70ºC

Fixflow Features

Control - Designed with SCM.  Stops water automatically when water flow exceeds 1 minute

Adjustable distance - Easily adjustable sensor range

Strainer device - Strainer can be removed and cleaned to prvent blocking

Anti-blocking needle - The solenoid valve is protected by an anti-blocking needle inside



Technical Specifications

Operating Pressure: 1.0 - 8.0 bar (14.5 - 116 PS)

Maximum Water Temperature: 70°C

Water Supply: 3/8” BSP

Capacity: 6 volts

Power Supply: 240V mains trasform 6V DC

Product Code Colour Height (mm) Width (mm) Depth (mm) Capacity
WR-ZY-8131A Brass/Chrome plated 60 60 220 6 Volts DC
