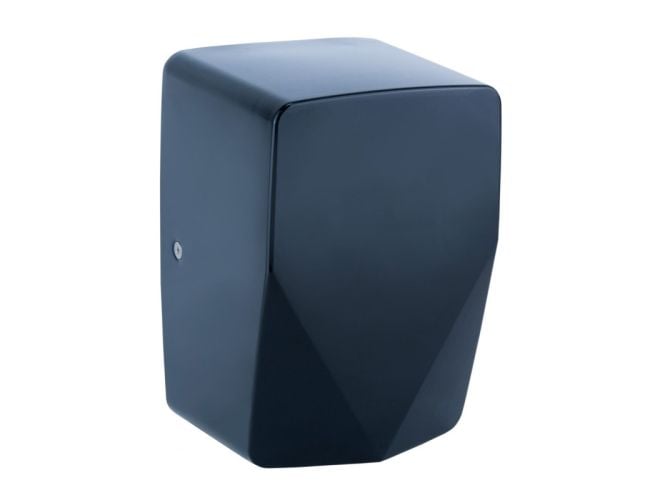

Eclipse V Dry Hand Dryer Black
- High speed
- On/Off Heater switch
- Quick Drying
- Blue LED Light
Hand Dryer | Eclipse V Dry | Black
70 db(A) | High Speed 10-15 Second Drying Time
The Eclipse V Dry uses a series of high speed jets for fast and through 8-10 second hand drying, It also gives you the option to have the heater element turned on or off. This is ideal for when the ambient air temperature is low and you want the comfort of warm air. When the heater is not needed, it can be switched off to save even more energy and money.
Speed :
Manufacturer states Thie High Speed Hand Dryer has a dry time of 10 - 15 Seconds
Noise :
Manufacturer stated 70 dbA @ 1 Metre
Usage :
Recommended for Medium traffic washrooms.
Energy Efficiency :
It has an adjustable power rating of 500 - 1350 watts
Hygiene :
No touch activation using infrared sensors, Does not come with any enhanced hygiene qualities.
Installation :
Easy Installation, with no additional considerations. All hand dryers require a suitable fused spur for installation
Vandal Resistance :
All steel front cover painted black
TECHNICAL SPECIFICATION
| Energy Consumption | Dry Time (secs) | 8 - 10 |
| Power Rating | 500w to 1350w | |
| Watts Per Dry (W) | ||
| Cost Per Dry | ||
| Auto Sensor Detection | Yes | |
| Performance | Dry Time (secs) | 8 - 10 |
| Motor (RPM) | ||
| Air Speed (m/s) | 60 | |
| Noise | Decibel Rating (dB) | 70 |
| Hygiene | No touch sensor operation | Yes |
| Long Life | Guarantee (years) | 1 |
| Electrical & Safety | IP Rating | |
| Child Suitability rating | 3 | |
| Construction | Weight | 5 |
| Material | Steel | |
| Motor Type | Adjustable brush type | |
| Certification | ||
| Dimensions | Height x Width x Depth (mm) | 256 x 174 x 150 |
| Product Code | UB1028B/HCR1AB |
INSTALLATION HEIGHTS
| Installation Heights are from the floor to bottom of dryer | |
| Men | 1170mm |
| Women | 1120mm |
| Children aged 4 - 7 | 810mm |
| Children aged 7 - 10 | 910mm |
| Children aged 10 - 13 | 1020mm |
| Children aged 13 - 17 | 1120mm |
| Disabled Users | 940mm |
