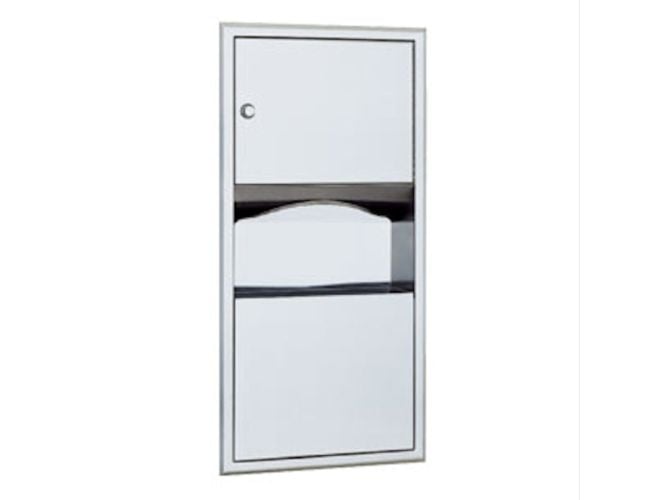

Bobrick Classic Recessed Paper Towel Dispenser & Waste Bin 7.6L
- Bobrick Classic Recessed Paper Towel Dispenser & Waste Bin
- Dispenses 350 C‑fold or 475 multifold towels
- Knob-latch retains door
- Removable waste container has 2-gal. (7.6-L) capacity.
Bobrick Classic Paper Towel Dispenser & Waste Bin 7.6L manufactured in type 304 stainless steel with a brushed satin finish.
Seamless bevelled flange
Dispenses 350 C‑fold or 475 multifold towels
Knob-latch retains door
Removable waste container has 2-gal. (7.6-L) capacity.
Stainless steel skirt for surface-mounting available seperately (B-3699-57)
| Product Code | Colour | Height (mm) | Width (mm) | Projection/Depth (mm) |
| B-369 | Brushed Satin | 710 | 355 | 5 |
| Rough Wall Opening | 675 | 320 | 102 | |
MATERIALS:
Cabinet — 18-8, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin finish.
Flange — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Drawn and bevelled, one-piece, seamless construction.
Door — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Secured to cabinet with a full-length stainless steel piano-hinge. Equipped with a knob latch.
Paper Towel Dispenser — 18-8, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Capacity: 350 C-fold or 475 multifold paper towels.
Optional: Order Bobrick Model No. 369-130 TowelMate® available as an optional accessory. TowelMate accessory allows for paper towels to dispense one at time without bulging or sagging, or falling through the towel tray opening. The 90 degree return on the towel guide prevents papers from falling forward and out when door is opened for servicing.
Waste Receptacle — 18-8, type-304, Heavy-gauge stainless steel with satin finish. Top edges are hemmed for safe handling. Retaining Hook. Capacity: 2-gal. (7.6-L).
OPERATION:
Paper towel dispenser will dispense C-fold or multifold paper towels without adjustment. Rounded towel tray has hemmed opening to dispense paper towels without tearing. Waste receptacle is retained in cabinet by a retaining hook feature and is removable for servicing.
INSTALLATION:
Provide framed rough wall opening 12-5/8" wide x 26-5/8" high (320 x 675mm). Minimum recessed depth required to finish face of wall is 4" (102mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits. If unit projects above top of wainscot, provide aluminium channel or other filler to eliminate gap between flange and finish face of wall. Mount unit in wall opening with shims between framing and cabinet at all points indicated by an S, then secure unit with sheet-metal screws furnished by manufacturer.
SPECIFICATION:
Recessed paper towel dispenser and waste receptacle shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Flange shall be drawn and bevelled, one-piece, seamless construction. Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a knob latch. Paper towel dispenser shall dispense 350 C-fold or 475 multifold paper towels without adjustment or use of adapters. Removable stainless steel waste receptacle shall be retained in cabinet by a retaining hook feature, have top edges hemmed for safe handling, and shall have a minimum capacity of 2-gal. (7.6-L).
