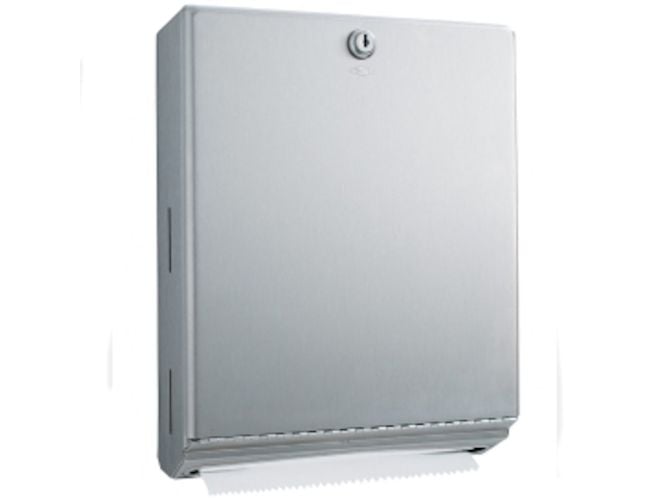

Bobrick Classic Slimline Paper Towel Dispenser
- Bobrick Classic Slimline Paper Towel Dispenser
- Dispenses 400 C-fold or 525 Multifold towels
- Viewing window
- Lockable
- Brushed Satin stainless steel
Bobrick Classic Slimline Paper Towel Dispenser manufactured in type 304 stainless steel with a brushed satin finish
viewing slots in side to indicate when refill is required
Dispenses 400 C-fold or 525 multifold towels (79-97mm deep) without adapters
Door has tumbler lock - All locking accessories are keyed alike for ease and convenience of maintenance.
Optional Accessories - 262-130 TowelMate Paper Towel Dispenser Accessory, TowelMate accessory allows for paper towels to dispense one at a time without bulging, sagging or falling through the towel tray opening
| Product Code | Colour | Capacity | Height (mm) | Width (mm) | Depth (mm) |
| B-262 | Brushed Satin | 400 C-Fold | 355 | 275 | 100 |
MATERIALS:
Cabinet — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel. All-welded construction. Exposed surfaces have satin finish. Towel tray has hemmed opening to dispense paper towels without tearing.
Door — 18-8 S, type-304, 22-gauge (0.8mm) stainless steel with satin finish. Secured to cabinet with a full-length stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom accessories.
Optional: Order Bobrick Part No. 262-130 TowelMate™ available as on optional accessory. TowelMate accessory allows for paper towels to dispense one at a time without bulging, sagging or falling through the towel tray opening. TowelMate fits Gamco and most manufacturers' similar models.
OPERATION:
Unit dispenses C-fold and multifold paper towels 3-1/8" to 3-13/16" (79–97mm) deep. Slots in sides of cabinet indicate refill time. Capacity: 400 C-fold or 525 multifold paper towels. To dispense narrower towels 2-1/2" to 3-1/8" (64–79mm) deep, order optional TowelMate accessory Bobrick Part No. 262-130.
INSTALLATION:
Mount unit on wall with four #10 x 1-1/4" (4.8 x 32mm) sheet-metal screws (not furnished) at four of the eight mounting holes indicated by an S (top slots and bottom holes preferable). For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure with sheet-metal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 1/8" (3mm) toggle bolts or expansion bolts.
SPECIFICATION:
Surface-mounted paper towel dispenser shall be type-304 stainless steel with all-welded construction; exposed surfaces shall have satin finish. Door shall be secured to cabinet with a full-length stainless steel piano-hinge and equipped with a tumbler lock keyed like other Bobrick washroom accessories. Paper towel tray shall have hemmed opening to dispense paper towels without tearing. Unit shall be capable of dispensing 400 C-fold or 525 multifold paper towels measuring 3-1/8" to 3-13/16" (79 to 97mm) deep. Narrower paper towels 2-1/2" to 3-1/8" (65 to 79mm) deep may be efficiently dispensed with the use of an optional TowelMate accessory, Bobrick Part No. 262-130. TowelMate accessory allows for paper towels to dispense one at a time without bulging, sagging or falling through the towel tray opening
