Bobrick Universal Roll Paper Towel Dispenser with Waste Receptacle
- ClassicSeries Combi Paper Towel Roll Dispenser & Waste Bin.
- Bin Capacity 68.0L.
- Roll Dispenser Capacity: Universal Standard Core 8" x 8"
- Type 304 - Stainless Steel Dispenser.
- Intuitive LED light on door.

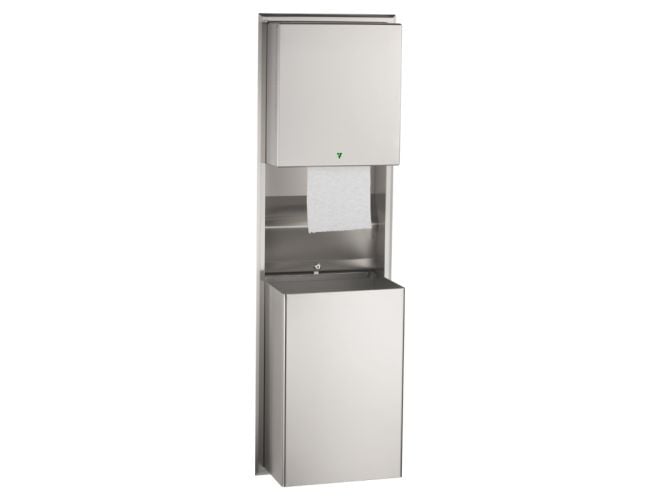

Bobrick Recessed Convertible Automatic Universal Paper Roll Dispenser And Waste Receptacle
- Adjustable (2", 3.5", 4") electronic sensor automatically dispenses towel when hands are placed under the towel
opening. - Intuitive LED light on door directs patrons to dispense area.
- Dispenses universal, 1-1/2" to 2" (38 to 51mm) diameter core, up to 8" (205mm) diameter, 8" (205mm) wide, non-perforated, non-proprietary paper towel rolls.
- LED light on the door flashes green when dispenser is ready to dispense, flashes red to indicate paper maintenance is required and red and green (alternating) to indicate low battery.
- Towel length can be set to short (10"), medium(12") and long (14") lengths.
- Dispenser can be set to “exposed” or “hidden” mode which determines whether a paper towel hangs down when in idle mode.
- Customizable sensor range can be set to 4", 6" or 8". Dispenser includes a 3-1/2" (90mm) diameter stub roll feature.
- Paper advance button dispenses paper when pressed.
- To empty waste receptacle, unlock with key provided
| Product Code | Colour | Height (mm) | Width (mm) | Inset Depth(mm) |
| B-39747 | Brushed Satin | 1420 | 385 | 102 |
| Recessed Wall Dimensions | 1390 | 405 | 102 |
MATERIALS:
Cabinet — 18-8, Type-304, heavy-gauge stainless steel. Welded construction. Exposed surfaces have satin-finish. Equipped
with a tumbler lock keyed like other Bobrick washroom accessories.
Flange — 18-8, Type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Drawn and beveled, one-piece, seamless
construction.
Door — 18-8, Type-304, 20-gauge (0.9mm) stainless steel with satin-finish. Drawn, one-piece, seamless construction. Secured
to cabinet with full-length, stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom
accessories.
Automatic Roll Towel Dispenser — Durable, high-impact resin materials. Accepts universal standard-core, non-perforated
rolls up to 8" (205mm) wide, 8" (205mm) diameter. 800 ft (244 m) long. Dispenses one towel per dispense and can be set
to dispense paper towels at three different lengths. Accommodates up to 3-1/2" (90mm) diameter stub roll with automatic
transfer to full roll.
Waste Receptacle — 18-8, Type-304, 22-gauge (0.8mm) stainless steel with satin finish. Edges hemmed for safe handling.
Secured to cabinet with a tumbler lock keyed like other Bobrick washroom accessories. Capacity: 18-gal. (68.0-L).
