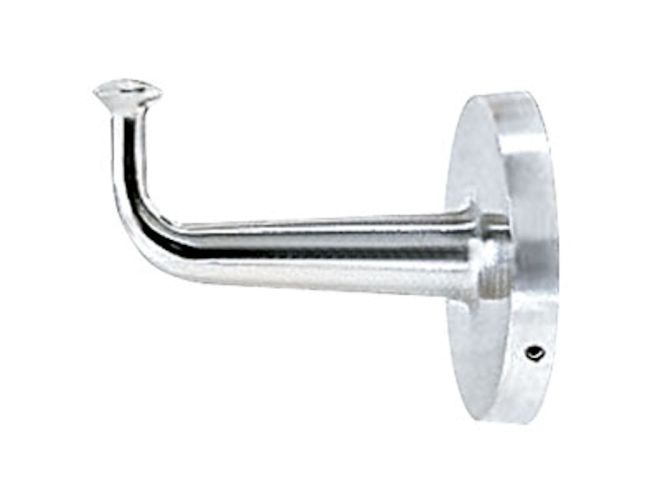

Bobrick Heavy Duty Clothes Hook with Concealed mounting

£14.30 £11.92
  • Bobrick Heavy Duty Clothes Hook with Concealed mounting
  • 3 concealed mounting screw holes
  • Withstands 136kg
  • Brass with satin nickel-plated finish
Availability: In stock
Quick Code :
11047
Warranty :
1 Year
Brand :
Bobrick
Delivery :
2-3 Days

Bobrick Heavy Duty Clothes Hook with Concealed mounting

Brass with satin nickel-plated finish to match stainless steel

Three concealed countersunk mounting screw holes

Withstands 136kg downward pull

Product Code Colour Diameter (mm) Projection (mm)
 B-2116 Brushed Satin  70   85



MATERIALS:

Hook and Flange — One-piece brass casting with satin nickel-plated finish. Withstands 300-lb (136-kg) downward pull if properly installed. Secured to concealed wall plate with three stainless steel setscrews. Concealed Wall Plate — 12-gauge (2.7mm) case hardened steel.



INSTALLATION:

Secure wall plate to wall with two sheet-metal screws, furnished by manufacturer, at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure mounting plate with screws furnished. For other wall surfaces, provide fiber plugs or expansion shields for use with screws furnished, or provide toggle bolts or expansion bolts. Secure hook to wall plate by tightening three stainless steel setscrews in flange.



SPECIFICATION:

Heavy-duty clothes hook with concealed mounting shall be one-piece brass casting with satin nickel-plated finish. Hook shall be secured to a concealed wall plate with three stainless steel setscrews. Hook shall withstand 300-lb (136-kg) downward pull when properly installed.

b-2116 (188.08 kB)
