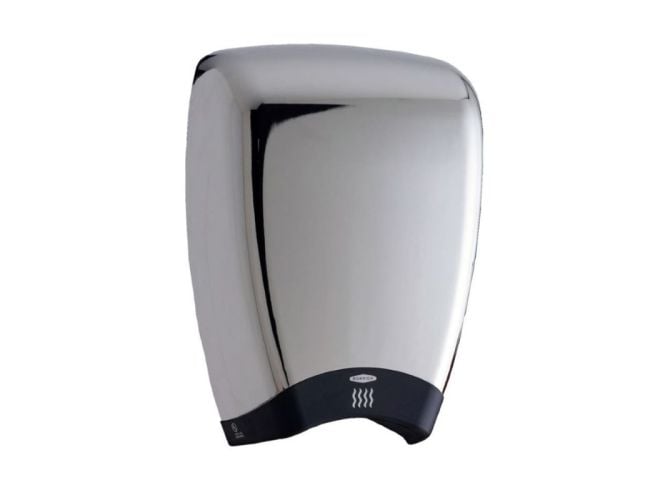

Bobrick TerraDry® Warm Air Hand Dryer Chrome

Original Price £509.74 Special Price £458.76 £382.30
Or
Discount code
Apply Remove
  • Unique Design
  • Efficient Dry Time
  • Low Noise
  • Chrome Finish
Availability: In stock
Quick Code :
14583
Warranty :
10 Years
Brand :
Bobrick
Delivery :
1-2 Days
Sku :
B-7188

Hand Dryer | BobrickTerraDry® | Chrome

70 db(A) | 15 Second Drying Time

Chrome finish Unit is equipped with single outlet for efficient dry time. The unit is uniquely designed to have a sound pressure level of 70dB(A) measured at 39" (1 meter) from source. The unit is CE marked, cULus Listed.

Bobrick TerraDry Quiet Hand Dryer:

No-touch operation: electronic sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. Dryer will not stop by itself before user is satisfied hands are dry. Dryer operates only when actually drying hands which saves energy and operating costs. Electronic sensor will automatically shut dryer off 1-1/2 minutes after dryer turns on if an inanimate object, such as tape or chewing gum, is placed across air-outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally

10-Year Limited Warranty — In addition to Bobrick’s one-year guarantee, Bobrick extends a limited 10 year warranty from the date of purchase for Model B-770 and B-778 hand dryers on all parts, except motor brushes, to the original owner of the installed unit against defects in factory workmanship or material under normal use and service. Motor brushes are warranted for 3 years from date of purchase. This warranty is limited to the repair or exchange of defective parts at the option of Bobrick.

MATERIALS:

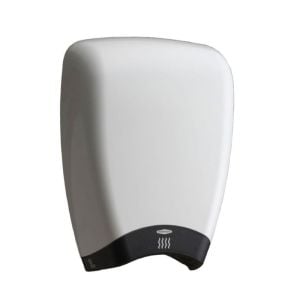

Cover — Aluminum die-casting with high-gloss epoxy finish electrostatically applied. White (B-7180) and Chrome (B-7188). Cover projects no more than 4" (100mm) from wall and is secured to mounting base with two vandal-resistant, recessed hexscrews.

Air-Inlet Grill — One-piece vandal resistant UL 94-5V black plastic.

Mounting Base — Equipped with four 0.236" (6mm) diameter mounting holes and one 7/8" (22mm) diameter holes suitable for between-wall wiring.

Motor/Fan — Thermally protected, Universal, 1/7 hp, 8000 rpm motor, on resilient mounting. Shielded ball bearings at both ends. Double-inlet forward curved impeller, providing air volume of 120 m³/hr (71cfm); air velocity of 35m/s (7000 lfm).

Heating Element — Coiled Nichrome heating element mounted on a mica frame, protected by integral automatic thermal overload device. To heat air without hot spots and remain inaccessible to vandals.

Electronic Control — Infrared sensor automatically turns dryer on when hands are held under air-outlet opening and across path of sensor. Remove hands from path of sensor and dryer stops. Electronic sensor has automatic shutoff approximately 1-1/2 minutes after dryer turns on if an inanimate object is placed across air-outlet opening. After inanimate object is removed, electronic sensor automatically resets itself and dryer operates normally.



Product Code Colour Height (mm) Width (mm) Projection/Depth (mm)
 B-7188 Chrome 351 259 100



INSTALLATION HEIGHTS

Installation Heights are from the floor to bottom of dryer
Men 1170mm
Women 1120mm
Children aged 4 - 7 810mm
Children aged 7 - 10 910mm
Children aged 10 - 13 1020mm
Children aged 13 - 17 1120mm
Disabled Users 940mm
"

Q. Is the warranty an on-site Warranty?

A. No, if your hand dryer becomes faulty during the warranty period it will need to be returned to the manufacturer for either a repair or replacement. The warranty on any product is offered by the manufacturer and not by ourselves however we will assist with any problems that may occur during this period.

"
