Bobrick Welded Frame Mirror with Shelf

  • 19 x 19mm Angle Frame
  • One Piece Satin Finish
  • Snap Locking Device
  • Concealed Mounting
  • 125mm Shelf
Availability: Out of stock
Only %1 left
Quick Code :
11021
Warranty :
15 Years
Brand :
Bobrick
Delivery :
1-2 Days
Sku :
B-292

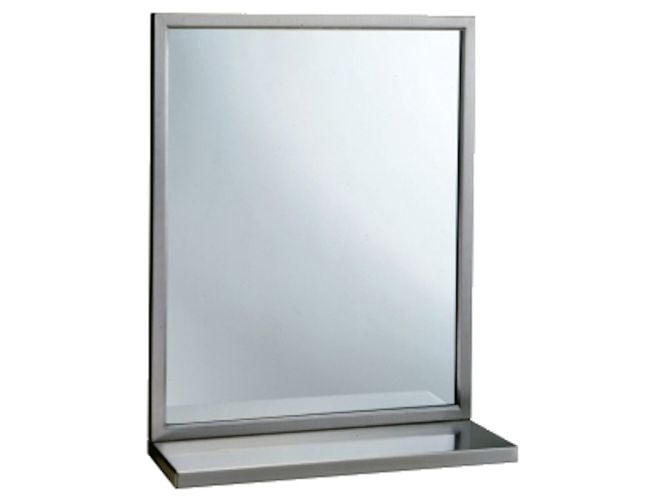

Mirror with one-piece satin finish stainless steel 19 x 19mm angle frame.

Corners fully welded, ground and polished smooth.

Fully welded 125mm shelf.

Bevelled frame edge at mirror for improved appearance.

Snap Locking devices secure mirror to concealed wall hanger.



STANDARD B-290 SERIES MIRRORS
Product Code Overall Size (mm)
(W) (H)
B-292-1830 460 760
B-292-1836 460 910
B-292-2436 610 910

Designer's Notes:

1. Special-order sizes available on request.

2. Maximum size one-piece angle-frame mirror, 144'' x 72'' (366 x 183cm); minimum size, 12'' x 12'' (30 x 30cm). Maximum frame size available, 180'' x 72'' (457 x 183cm) with two pieces of glass in one-piece frame. Stainless steel I-section with polished finish covers seam where two pieces of glass butt together.

3. All Bobrick framed mirrors are manufactured to overall width and height dimensions. EXAMPLE: A 24'' x 36'' (61 x 91cm) mirror will be furnished 24'' x 36'' (61 x 91cm) outside-of-frame to outside-of-frame.

4. To specify special sizes use Series Number followed by width then height in inches. EXAMPLE: B-290 2024.

5. Bobrick framed mirrors are manufactured to a tolerance ± 1/8'' (3.2mm).

6. For sufficient space to lift mirror onto wall hanger(s), provide 3-1/4'' (85mm) minimum clearance above center line of mounting scre
