Bobrick Welded Frame Mirror with Tempered Glass
- 19 x 19mm Angle Frame
- One Piece Satin Finish
- Snap Locking Device
- Concealed Mounting
- Corners Fully Welded

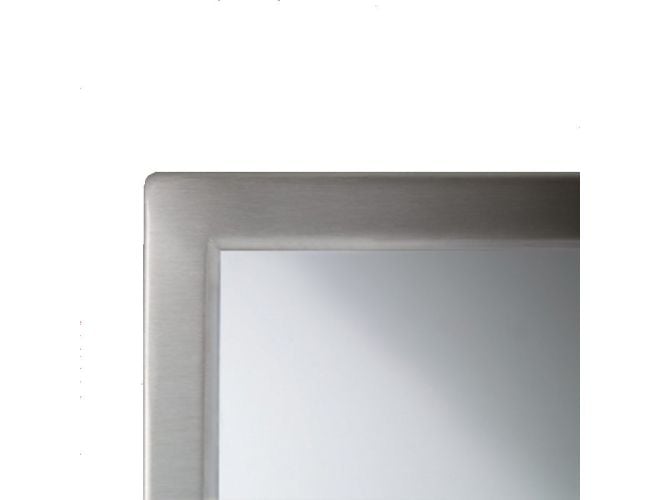

Mirror with one-piece satin finish stainless steel 19 x 19mm angle frame.
Corners fully welded, ground and polished smooth.
Bevelled frame edge at mirror for improved appearance.
Snap Locking devices secure mirror to concealed wall hanger.
| STANDARD B-290 SERIES MIRRORS | ||
| Product Code | Overall Size (mm) | |
| (W) | (H) | |
| B-2908-1830 | 460 | 760 |
| B-2908-1836 | 460 | 910 |
| B-2908-2436 | 610 | 910 |
Designer's Notes:
1. Special-order sizes available on request.
2. Maximum size one-piece angle-frame mirror, 144'' x 72'' (366 x 183cm); minimum size, 12'' x 12'' (30 x 30cm). Maximum frame size available, 180'' x 72'' (457 x 183cm) with two pieces of glass in one-piece frame. Stainless steel I-section with polished finish covers seam where two pieces of glass butt together.
3. All Bobrick framed mirrors are manufactured to overall width and height dimensions. EXAMPLE: A 24'' x 36'' (61 x 91cm) mirror will be furnished 24'' x 36'' (61 x 91cm) outside-of-frame to outside-of-frame.
4. To specify special sizes use Series Number followed by width then height in inches. EXAMPLE: B-290 2024.
5. Bobrick framed mirrors are manufactured to a tolerance ± 1/8'' (3.2mm).
6. For sufficient space to lift mirror onto wall hanger(s), provide 3-1/4'' (85mm) minimum clearance above center line of mounting scre
