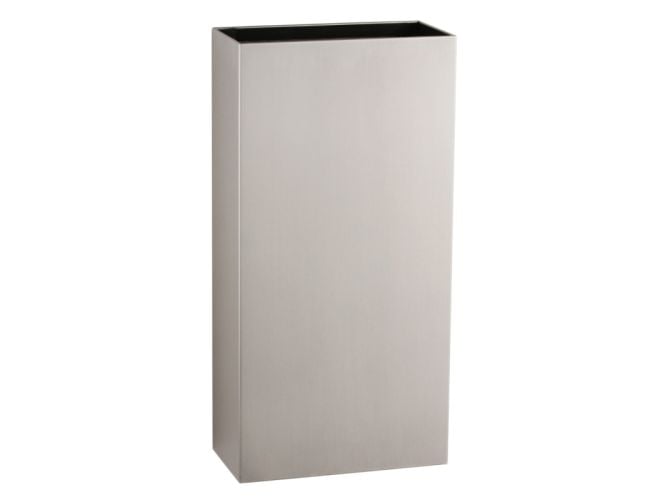

Bobrick Waste Bin 23L

MATERIALS:

Receptacle — Type 304 stainless steel, 18 gauge (1,2mm) with satin finish. All-seam-welded construction with hemmed edges
at top and bottom. Equipped for hosting a removable waste container, capacity 22.6 L (6-gal.).
Waste Container — Leak-proof rigid molded plastic. Removable for servicing. Capacity: 22.6 L (6-gal.).

OPERATION:

Waste Container can be removed by pulling it upwards out of the waste receptacle. Space between bottom of receptacle and
floor, when unit is properly mounted on wall, facilitates floor cleaning.
5-Year Limited Warranty — In addition to Bobrick’s one-year guarantee, Bobrick extends a limited 5-year warranty from the
date of purchase on all parts for model B-9279. This warranty is limited to the repair or exchange of defective parts at the
option of Bobrick and is only extended to the original owner of the installed unit against defects in factory workmanship or
material under normal use and service.

INSTALLATION:

Mount unit on wall with four sheet-metal screws (not furnished) at points indicated by an S. For plaster or dry wall
construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws. For
other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws, or provide 1/8" (3mm) toggle
bolts or expansion bolts.
Designer's note: a dedicated rubber band - not furnished - will be fixated around the overlayed plastic bag, also not furnished
holding the plastic bag in snug fit around the waste container, providing a clean look by preventing the plastic bag from being
wrapped outside, around the waste receptacle. Please use widely available Waste bag-rubber bands (“can bands”) of 7" x 1/8"
for max. 32 gal.

SPECIFICATION:

Surface-mounted waste receptacle, type 304 stainless steel, 18 gauge (1,2mm) with satin finish. All-seam-welded construction
with hemmed edges at top and bottom. Equipped for hosting a removable waste container, capacity 22.6 L (6 gal.). Furnished
with a leak-proof rigid molded plastic waste container. Removable for servicing. Capacity: 22.6 L (6 gal.).
